In the modern industrial landscape, rapid fulfillment cycles and soaring urban real estate costs are forcing global distribution hubs to rethink spatial dynamics. Traditional selective racking, while flexible, wastes up to 60% of floor space in access aisles. This is where Pallet Flow Storage Systems (also known as gravity flow systems) provide a revolutionary leap in efficiency.
Operating on a strict First-In, First-Out (FIFO) methodology, pallet flow storage utilizes inclined roller tracks set at calculated pitch gradients. Pallets are loaded from the replenishment face and glide safely under gravity to the extraction face. By consolidating aisles, warehouses can increase storage capacity by up to 150% compared to standard configurations, making it the system of choice for temperature-controlled cold chains, food & beverage distribution, and fast-moving consumer goods (FMCG).
Global supply chains look beyond initial capital expenditures to calculate Total Cost of Ownership (TCO). Gravity flow systems reduce internal forklift travel times, limit energy consumption in refrigerated environments, and drastically minimize product damage due to isolated, controlled pallet movement.
Investing in precision-engineered tracks and dynamic safety braking controllers ensures that pallets of varying configurations and weights glide smoothly. China's top flow storage exporters have spent over a decade refining the metallurgy and mechanical tolerances of these dynamic systems, yielding structures that operate flawlessly under continuous, high-cycle operations.
A trusted global leader in structural engineering, heavy-duty racking manufacturing, and automated warehousing systems.
Established in 2015, Shenzhen Sanyang Storage Equipment Manufacturing Co., Ltd. is a leading manufacturer specializing in heavy-duty industrial pallet racking, warehouse shelving systems, and automated material handling solutions. Located in Shenzhen, our modern facility spans a total building area of 38,000 m², equipped with advanced automated roll-forming machines, laser cutters, and robot welding lines.
With over 12 years of industry experience and 8 years of active export experience, Sanyang has expanded its international footprint, achieving an annual export revenue of $28 million USD. Our main overseas markets cover North America, Western Europe, Southeast Asia, and the Middle East, primarily serving global logistics hubs, e-commerce fulfillment centers, third-party logistics (3PL) providers, and large manufacturing enterprises.
Quality and precision are at the core of our operations. Supported by 35 full-time QC inspectors, we implement rigorous quality assurance protocols using ultrasonic weld flaw detection, coating thickness testing, and heavy-load stress tests to ensure strict compliance with ISO9001 and international FEM/ANSI safety standards.
Backed by a strong OEM/ODM background and a robust network of 1,200 supply chain partners, we offer highly customizable options—ranging from custom dimensions and load capacities to specialized powder coatings and seismic-resistant structural designs. Innovation drives our continuous growth: our team of 18 R&D engineers focuses on developing high-density and automated storage systems, successfully launching 65 new products last year alone.
A comprehensive visual walkthrough of our end-to-end production pipeline, exhibiting quality checks at every structural milestone.
Custom-engineered pallet flow storage installations suited to specific temperature constraints and cargo properties.
Operating in environments down to -30°C demands highly specialized structural alloys and lubricants that do not freeze. Sanyang's cold chain gravity systems feature customized low-temperature bearings and split rollers that guarantee continuous rotation, minimizing energy costs in high-density cooling rooms.
High inventory turnover dictates swift processing times. By grouping pallet replenishment on one side and picking on the other, our systems eliminate warehouse traffic collisions. Integration with pick-to-light systems further accelerates order picking and delivery operations.
With strict lot tracking and expiration control demands, the FIFO method is indispensable. Sanyang's gravity systems prevent dead stock by enforcing batch rotations. Corrosion-resistant coatings or full stainless-steel structures meet the highest food-safety standards.
Designed and manufactured in accordance with international safety metrics, ensuring structural stability under maximum load limits.
| Feature / Metric | Industrial Specifications | Standards & Compliance |
|---|---|---|
| Structural Materials | High-tensile steel Q235B / Q345B (equivalent to ASTM A36 / ASTM A572) | EN 10025, GB/T 700 |
| Load Capacity Range | 500 kg to 2,000 kg per pallet position | FEM 10.2.02, RMI MH16.1 |
| Pitch Gradient Options | 3% to 4.5% standard incline (customizable based on pallet weight) | Fully adjustable dynamic testing |
| Braking Roller Frequency | Positioned at 1.2m to 1.5m intervals for controlled speed retention | CE certified brake designs |
| Surface Protection | Electrostatic thermosetting epoxy powder coating (thickness > 80 microns) | ISO 9227 salt spray tested (corrosion protection) |
| Seismic Engineering | Seismic baseline calculations integrated for Zone 1 to Zone 4 regions | ASCE 7, FEMA guidelines |
| Temperature Resistance | Operates seamlessly from -30°C to +45°C | Cold storage specialized lubrication |
Purchasing large-scale gravity storage infrastructure from international factories requires attention to technical details to ensure compatibility, safety, and durability. Keep the following factors in mind when choosing your systems:
Clear, detailed answers regarding technical parameters, ordering processes, and safety protocols for gravity storage installations.
Pallet flow systems use built-in safety brake rollers (centrifugal speed controllers) positioned along the roller lanes. When a pallet moves down the track, these brake rollers engage and slow down the pallet if it exceeds a safe speed (typically 0.2 to 0.3 meters per second), ensuring controlled deceleration throughout the lane.
Optimal functionality requires sturdy, flat-bottom pallets. High-quality wooden pallets with bottom boards oriented parallel to the flow direction, plastic pallets with runners, or metallic pallets work best. Pallets with warped bottoms, missing boards, or exposed fasteners can cause flow stoppages.
Yes. Our team of 18 R&D engineers uses specialized CAD and structural simulation software to design upright frames, base plates, and bracing patterns that comply with regional seismic requirements (such as ASCE 7 or European Eurocodes).
With standard operation, high-quality, powder-coated structures last over 10 to 15 years. Annual maintenance involves verifying lane alignment, checking rollers for debris, confirming the responsiveness of the brake rollers, and ensuring upright column guards remain free of forklift impact damage.
Our products strictly align with ISO9001 quality management procedures. Our designs are engineered according to European FEM 10.2.02 design regulations and American ANSI MH16.1 guidelines, verified through extensive testing by our 35-person QC inspection team.

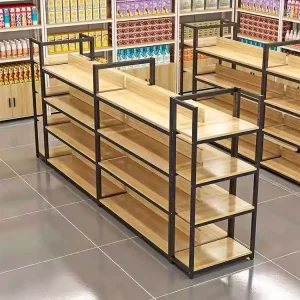

Discover our range of retail display and industrial racking systems designed to optimize space utilization.
