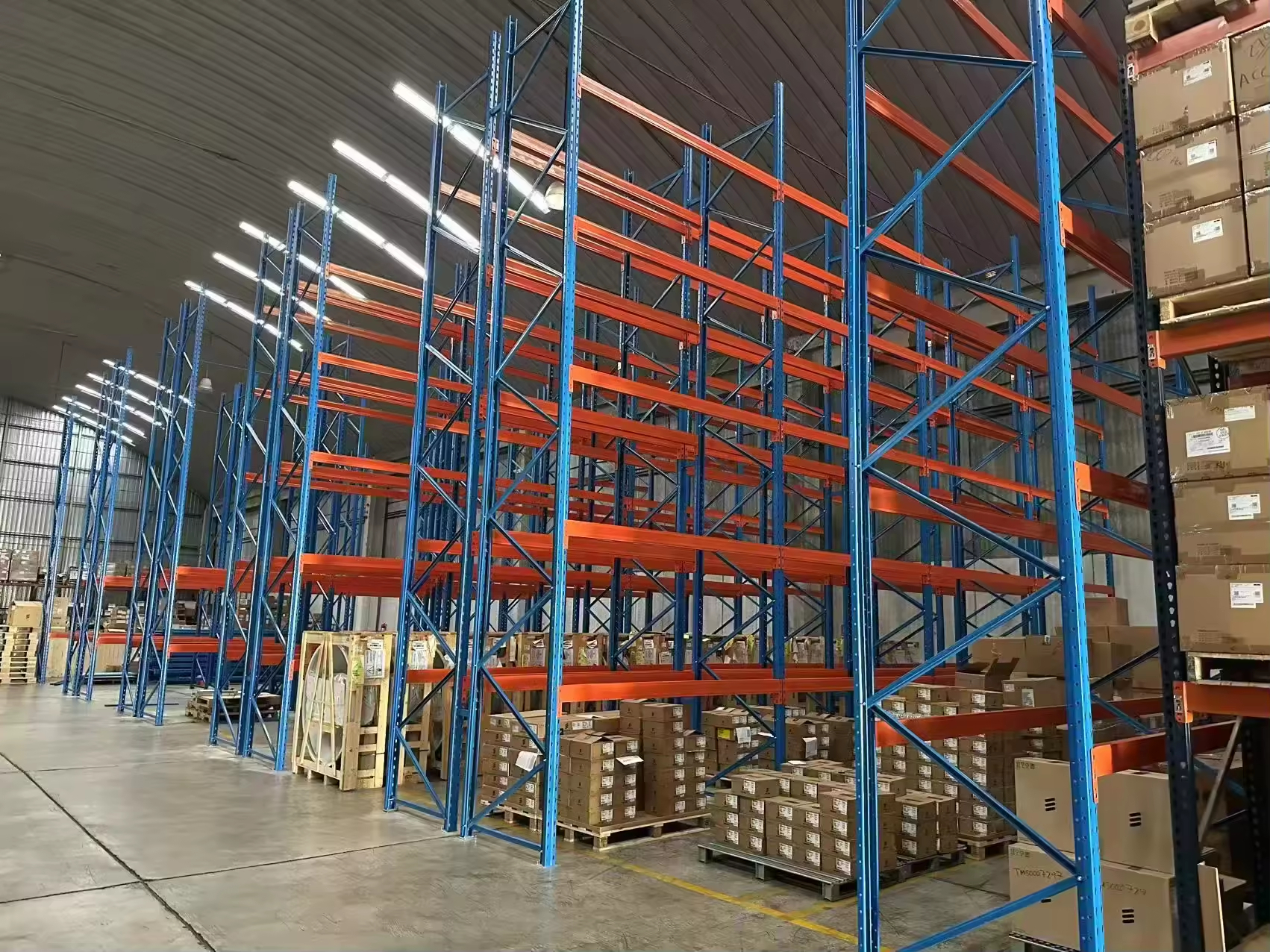

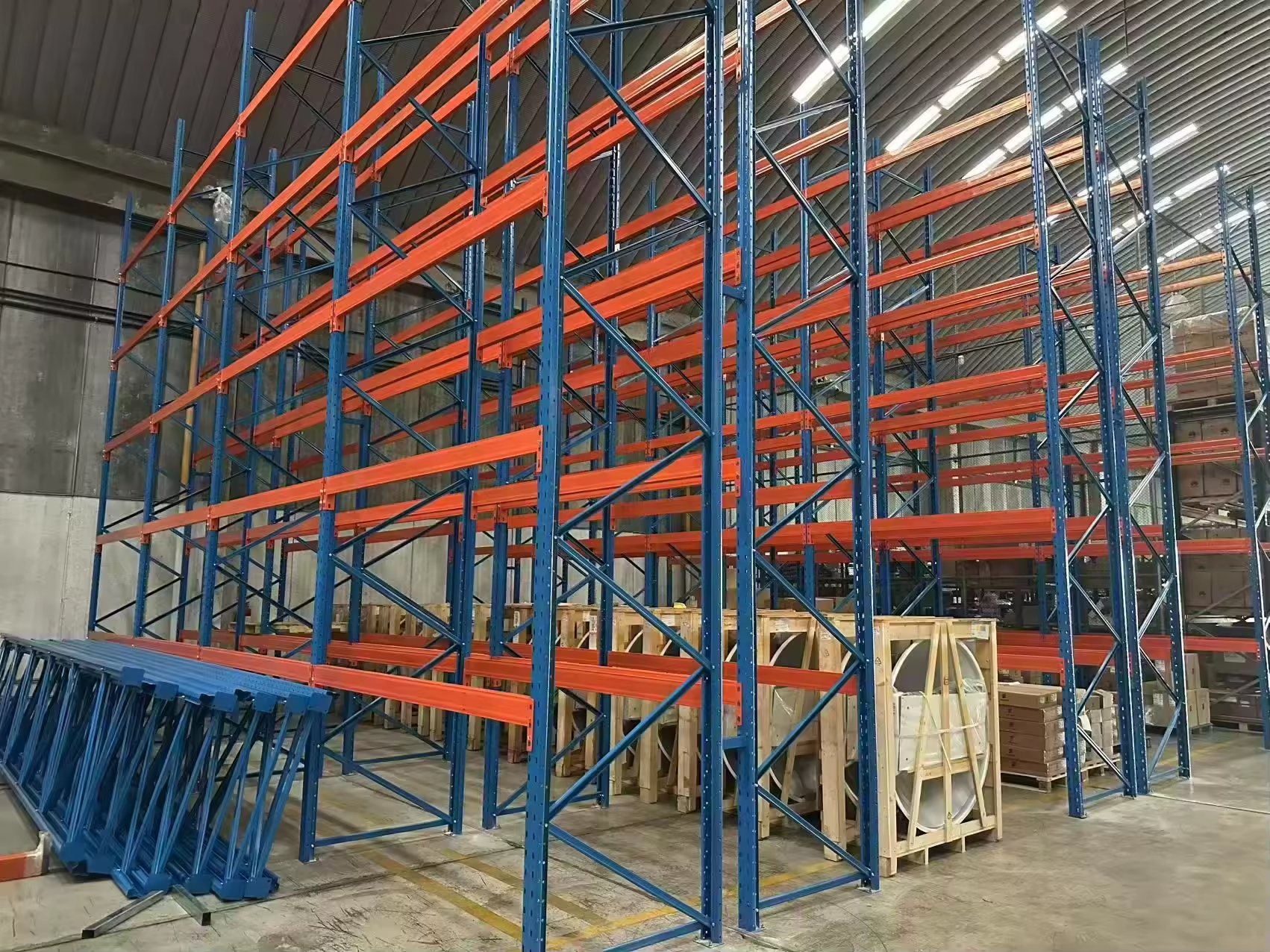

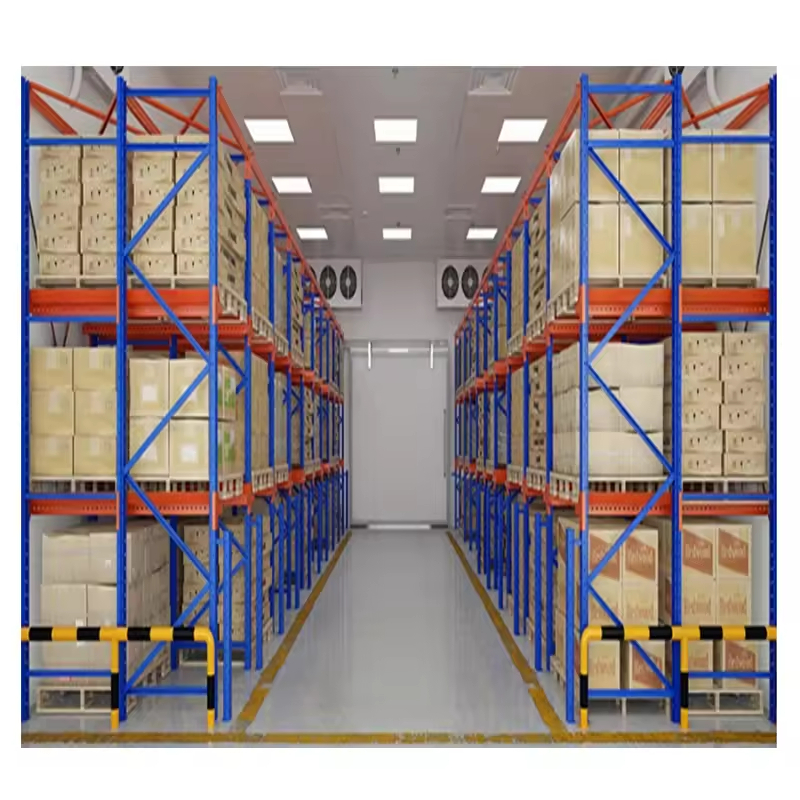

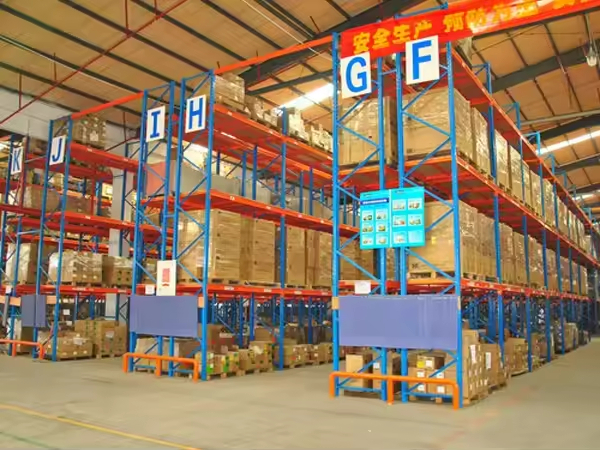

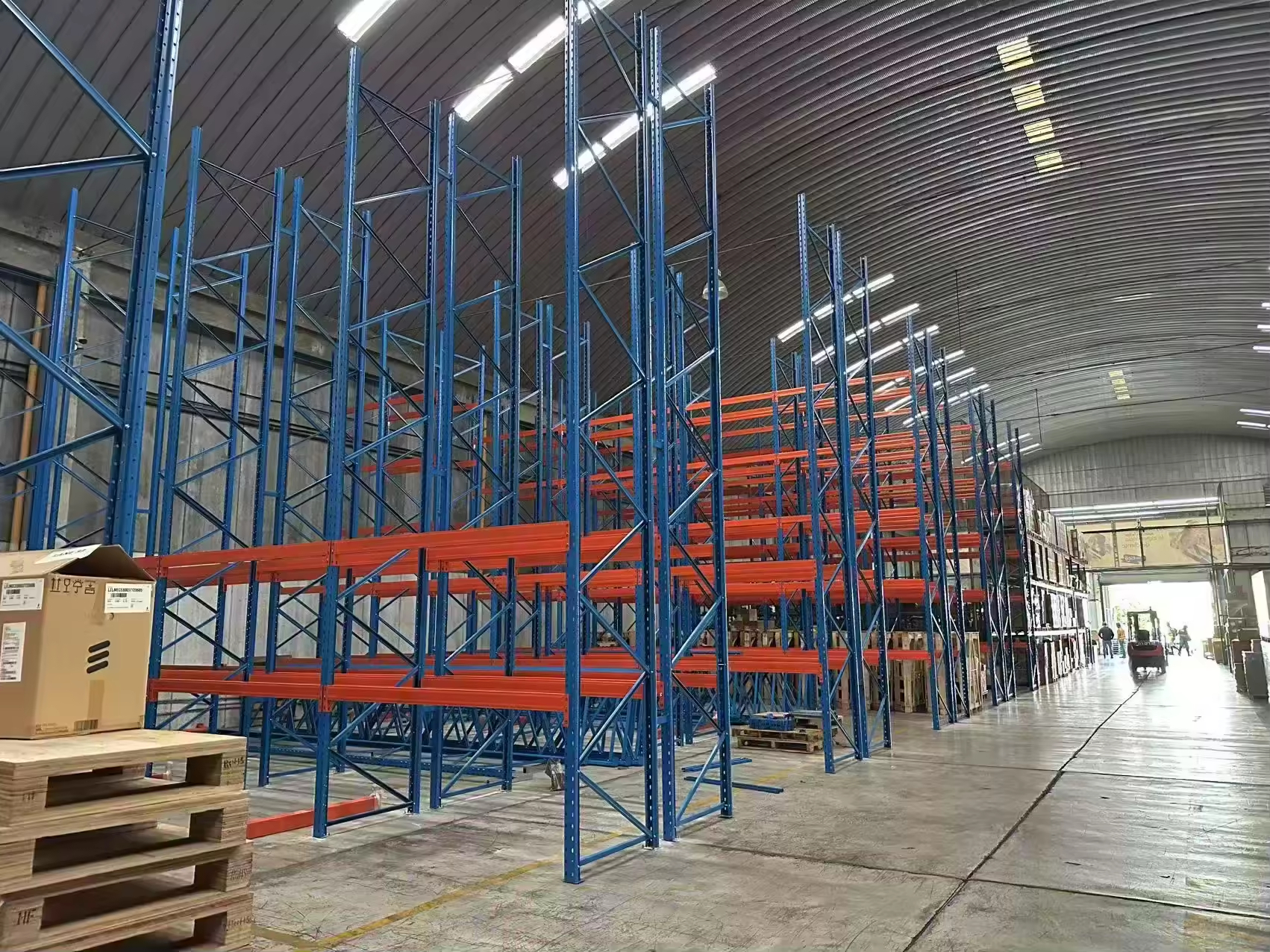

1. Beam shelves, also known as pallet shelves, are mainly composed of columns, beams and other main bearing components and their accessory parts. The connection between beams and columns is mostly made of mechanical locking structure, which can be disassembled and assembled at will. According to the actual use of the user: pallet load requirements, pallet size, the actual space of the warehouse, the actual lifting height of the forklift, provide different specifications of the beam shelf for choice. Beam type steel shelf structure system to support the main force components of the goods, through a specific beam-column node form (beam and column are connected by hooks, pins, bolts and welding, forming welded joints, bolt contacts, mechanical nodes) to form the shelf frame structure, here more semi-rigid nodes for processing, This is also one of the characteristics of the pallet beam type steel shelf that is different from the general steel structure.
| Type | Heavy Duty Adjustable Warehouse Storage Double-deep Pallet Racking |
| Dimension | Width: 1800 2000 2300 2500 2700mm Depth: 600 800 900 1000 1100 1200 mm Height:1800 2000 2500 3000 4000 4500 5000 5500 6000 7000 7500 8000mm etc. |
| Box Beam | 80x50, 100x50, 120x50, 140x50, 160x50mm, thickness 1.5-2.0mm |
| Upright | 80x60, 90x70, 100x70, 120x80mm, thickness: 1.8-2.5mm |
| Surface treatment | Electrostatic powder coating surface |
| Color | RAL color per customer's requirement |
| Weight capacity | 500--5000kg per layer |
| Service | OEM/ODM SERVICE OFFERED! |
