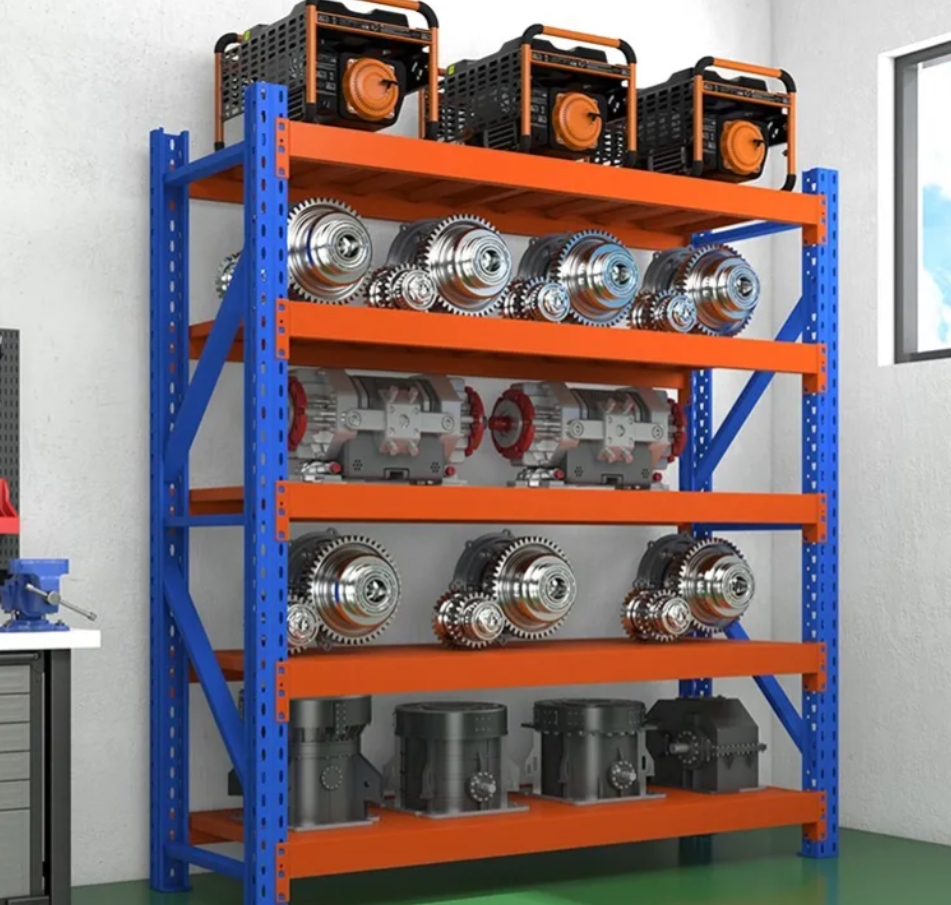

Heavy-Duty Metal Steel Boltless Storage Racking 5-Layer Pallet & Warehouse Beam Racking with Corrosion Protection

Product Description

Heavy Duty Warehouse Racking System Banner
Pallet Shelf Columns and Beams Structure
Understanding Beam Shelves Structure
Beam shelves, also known as pallet shelves, are mainly composed of columns, beams and other main bearing components and their accessory parts. The connection between beams and columns is mostly made of mechanical locking structure, which can be disassembled and assembled at will.

According to the actual use of the user: pallet load requirements, pallet size, the actual space of the warehouse, the actual lifting height of the forklift, provide different specifications of the beam shelf for choice. Beam type steel shelf structure system to support the main force components of the goods, through a specific beam-column node form (beam and column are connected by hooks, pins, bolts and welding, forming welded joints, bolt contacts, mechanical nodes) to form the shelf frame structure, here more semi-rigid nodes for processing. This is also one of the characteristics of the pallet beam type steel shelf that is different from the general steel structure.
Industrial Pallet Racking Detail View

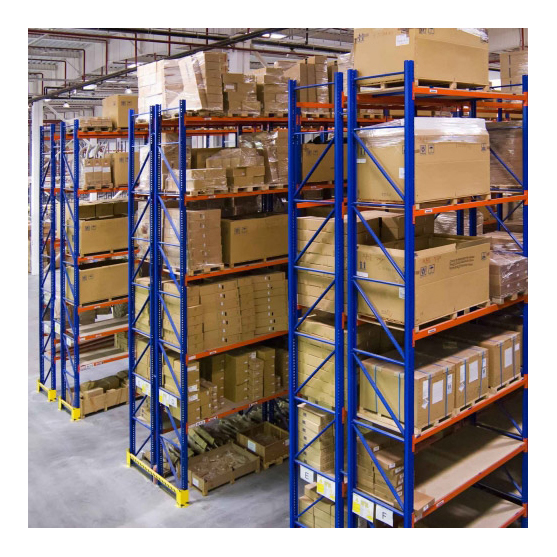

Warehouse Storage Racking Setup
Specifications Details
Type Heavy Duty Adjustable Warehouse Storage Double-deep Pallet Racking
Dimension Width: 1800, 2000, 2300, 2500, 2700mm
Depth: 600, 800, 900, 1000, 1100, 1200 mm
Height: 1800, 2000, 2500, 3000, 4000, 4500, 5000, 5500, 6000, 7000, 7500, 8000mm etc.
Box Beam 80x50, 100x50, 120x50, 140x50, 160x50mm, thickness 1.5-2.0mm
Upright 80x60, 90x70, 100x70, 120x80mm, thickness: 1.8-2.5mm
Surface treatment Electrostatic powder coating surface
Color RAL color per customer's requirement
Weight capacity 500--5000kg per layer
Service OEM/ODM SERVICE OFFERED!
Double Deep Pallet Racking Specifications
Warehouse Racking System Installation 1 Warehouse Racking System Installation 2 Warehouse Racking System Installation 3 Warehouse Racking System Installation 4 Warehouse Racking System Installation 5 Warehouse Racking System Installation 6 Warehouse Racking System Installation 7 Warehouse Racking System Installation 8 Warehouse Racking System Installation 9 Warehouse Racking System Installation 10
Heavy Duty Uprights and Beams Profile
Different Types of Shelves and Racks Available
Medium Duty and Heavy Duty Storage Options Selective Pallet Racking Systems Industrial Storage Racks Structural Details
Heavy Duty Warehouse Shelves Design Drive in and Double Deep Pallet Racking Custom Steel Rack Systems
Heavy Duty Cantilever Racks and Shuttle Racks
Frequently Asked Questions
Q1. What is the difference between you and other suppliers?
1. We have more than 20 years' experience in the production of shelf series products, using high-quality cold-rolled steel Q235, with quality assurance and 3-year warranty. We also accept various customized material combinations, including steel-wood frames and wooden structural frames.

2. We provide one-stop solutions, from the main products to a series of accessories, saving your time. We have a professional 3D modeling team that can provide reasonable solutions according to your needs. We will help you realize your idea.

3. After the order is issued, we will update the production status of the order for you in time, support on-site inspection, video inspection and other methods to solve your concerns, while providing you with the best logistics scheme and reducing transportation costs.
Q2. Are you a factory or a trading company?
We are a storage equipment manufacturer.
Q3. What is the mode of payment?
1) T / T.
2) Letter of credit.
Q4. What is your delivery time?
Generally speaking, within 15 days. It also depends on the order quantity and shelf design.
Q5. How to install the storage rack?
We provide all installation information flow, and our engineers can provide online service.
Q6. How is the price of warehouse shelves calculated?
Warehouse shelves are customized products, and there is no standardized pricing. Usually, after receiving customers' requirements, we will design a warehouse storage solution according to their needs. Once the solution is confirmed, we will calculate the price. In addition, price is not the only factor to be considered; factors such as space utilization, storage efficiency, load capacity, security and after-sales service are also important considerations.
Warehouse Racking Factory Manufacturing Process
