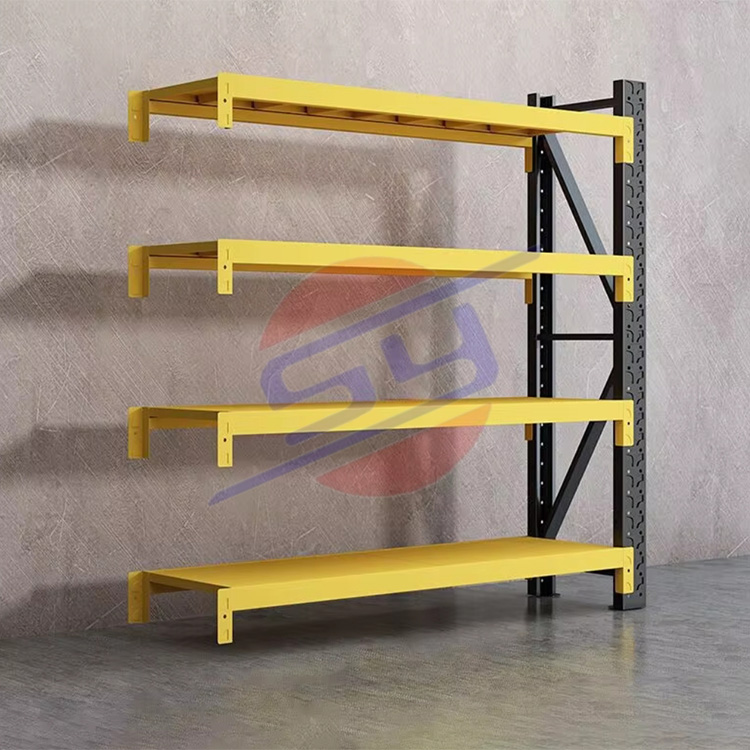

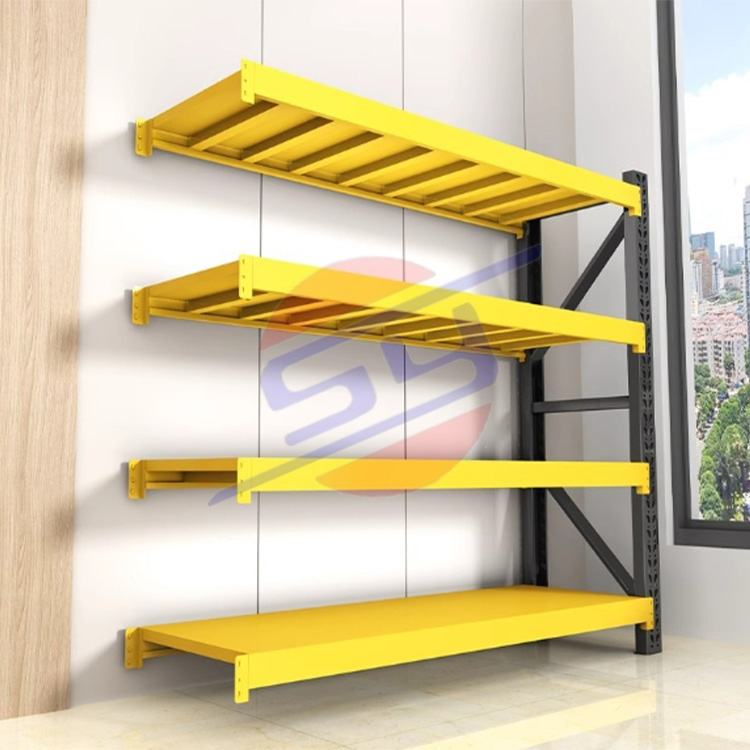

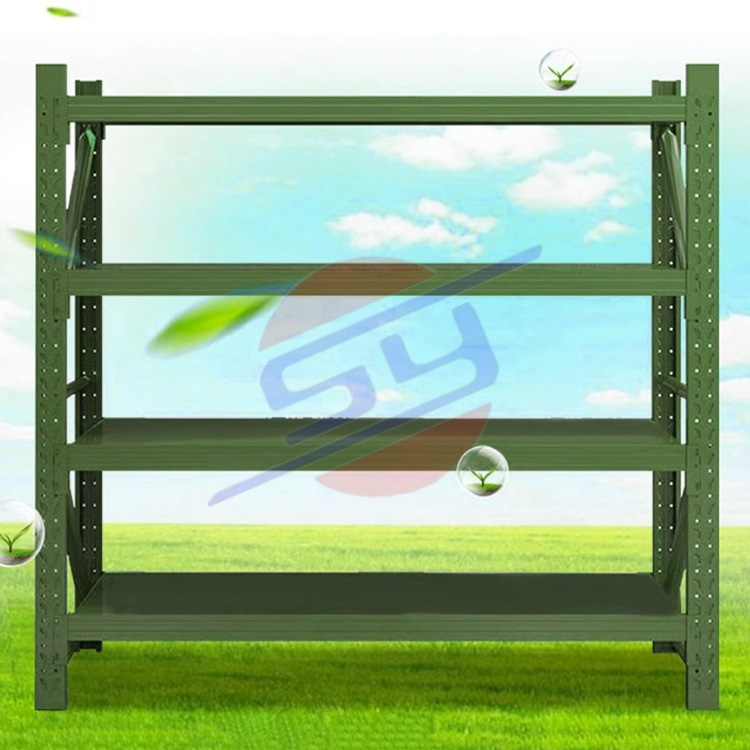

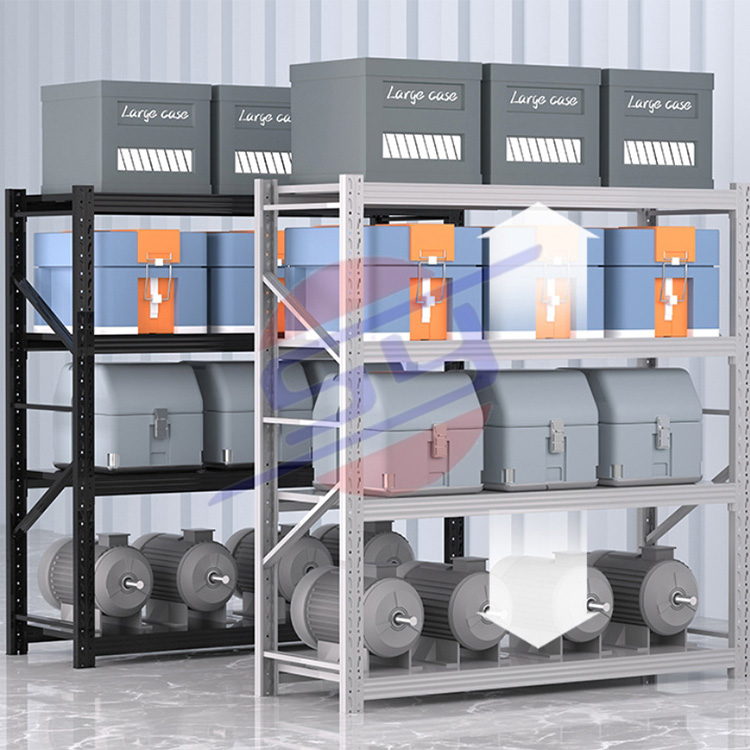

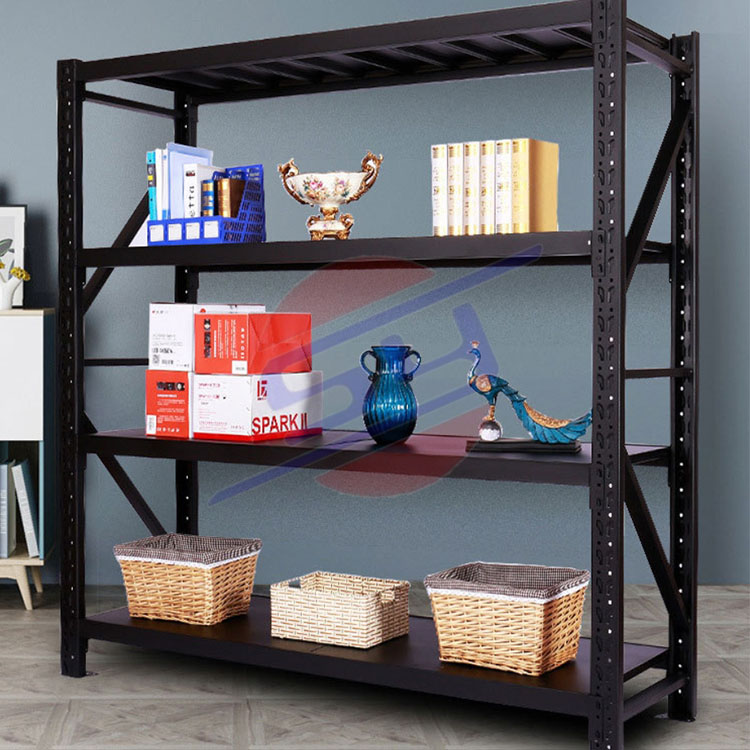

Beam shelves, also known as pallet shelves, are mainly composed of columns, beams and other main bearing components and their accessory parts. The connection between beams and columns is mostly made of mechanical locking structure, which can be disassembled and assembled at will. According to the actual use of the user: pallet load requirements, pallet size, the actual space of the warehouse, the actual lifting height of the forklift, provide different specifications of the beam shelf for choice. Beam type steel shelf structure system to support the main force components of the goods, through a specific beam-column node form (beam and column are connected by hooks, pins, bolts and welding, forming welded joints, bolt contacts, mechanical nodes) to form the shelf frame structure, here more semi-rigid nodes for processing, This is also one of the characteristics of the pallet beam type steel shelf that is different from the general steel structure.
| Type | Heavy Duty Adjustable Warehouse Storage Double-deep Pallet Racking |
| Dimension | Width: 1800 2000 2300 2500 2700mm Depth: 600 800 900 1000 1100 1200 mm Height: 1800 2000 2500 3000 4000 4500 5000 5500 6000 7000 7500 8000mm etc. |
| Box Beam | 80x50, 100x50, 120x50, 140x50, 160x50mm, thickness 1.5-2.0mm |
| Upright | 80x60, 90x70, 100x70, 120x80mm, thickness: 1.8-2.5mm |
| Surface treatment | Electrostatic powder coating surface |
| Color | RAL color per customer's requirement |
| Weight capacity | 500--5000kg per layer |
| Service | OEM/ODM SERVICE OFFERED! |
1. We have more than 20 years' experience in the production of shelf series products, using high-quality cold-rolled steel Q235, with quality assurance and 3-year warranty. We also accept various customized material combinations, including steel-wood frames and wooden structural frames. Look forward to working with you.
2. We provide one-stop solutions, from the main products to a series of accessories, saving your time. We have a professional 3D modeling team that can provide reasonable solutions according to your needs. We will help you realize your idea;
3. After the order is issued, we will update the production status of the order for you in time, support on-site inspection, video inspection and other methods to solve your concerns; To provide you with the best logistics scheme and reduce transportation costs.
We are a storage equipment manufacturer.
1) T / T. 2) Letter of credit.
Generally speaking, within 15 days. It also depends on the order quantity and shelf design.
We provide all installation information flow, and our engineers can provide online service.
Warehouse shelves are customized products, and there is no standardized pricing. Usually, after receiving customers' requirements, we will design a warehouse storage solution according to their needs. Once the solution is confirmed, we will calculate the price. In addition, price is not the only factor to be considered; factors such as space utilization, storage efficiency, load capacity, security and after-sales service are also important considerations.
